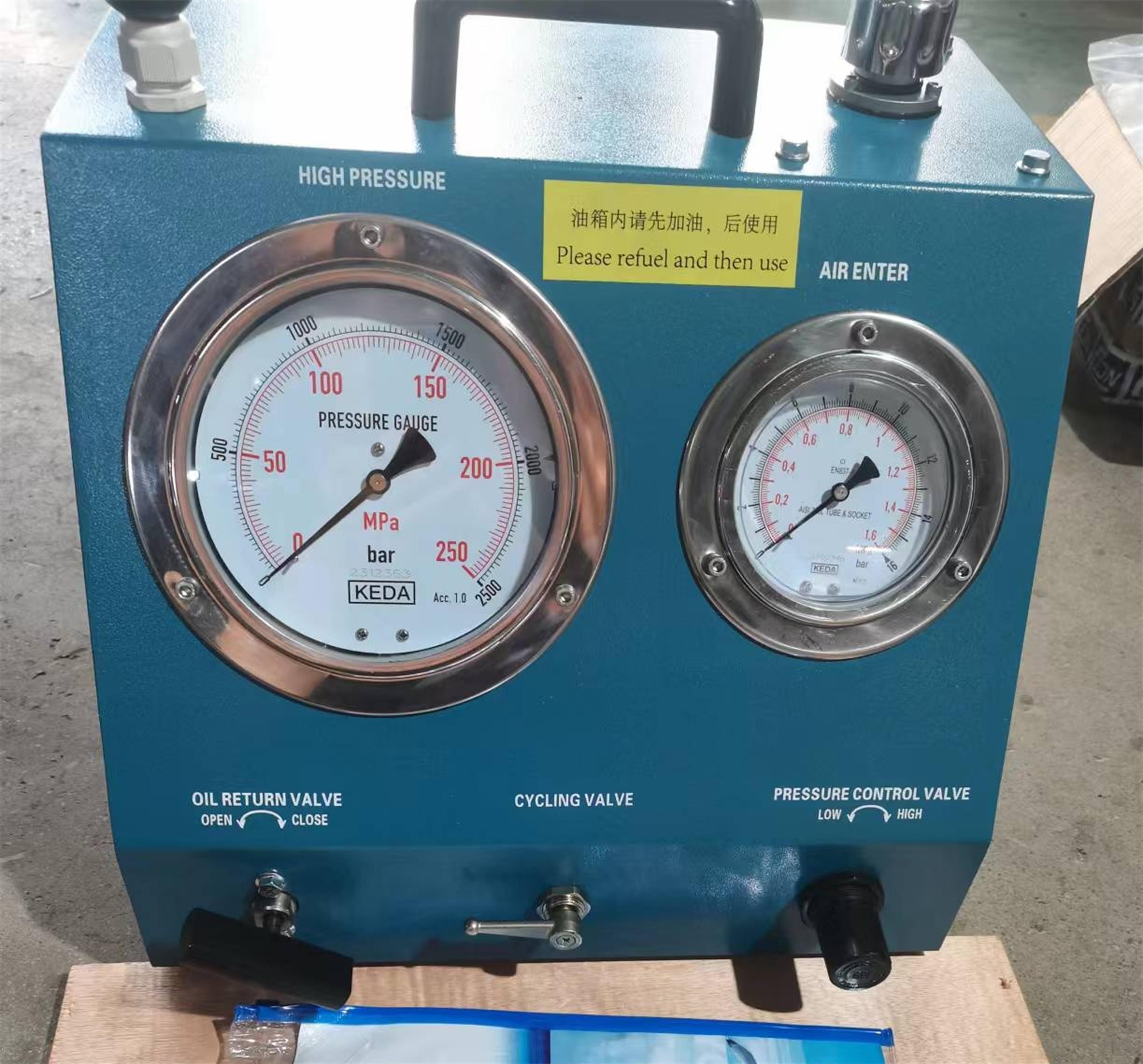

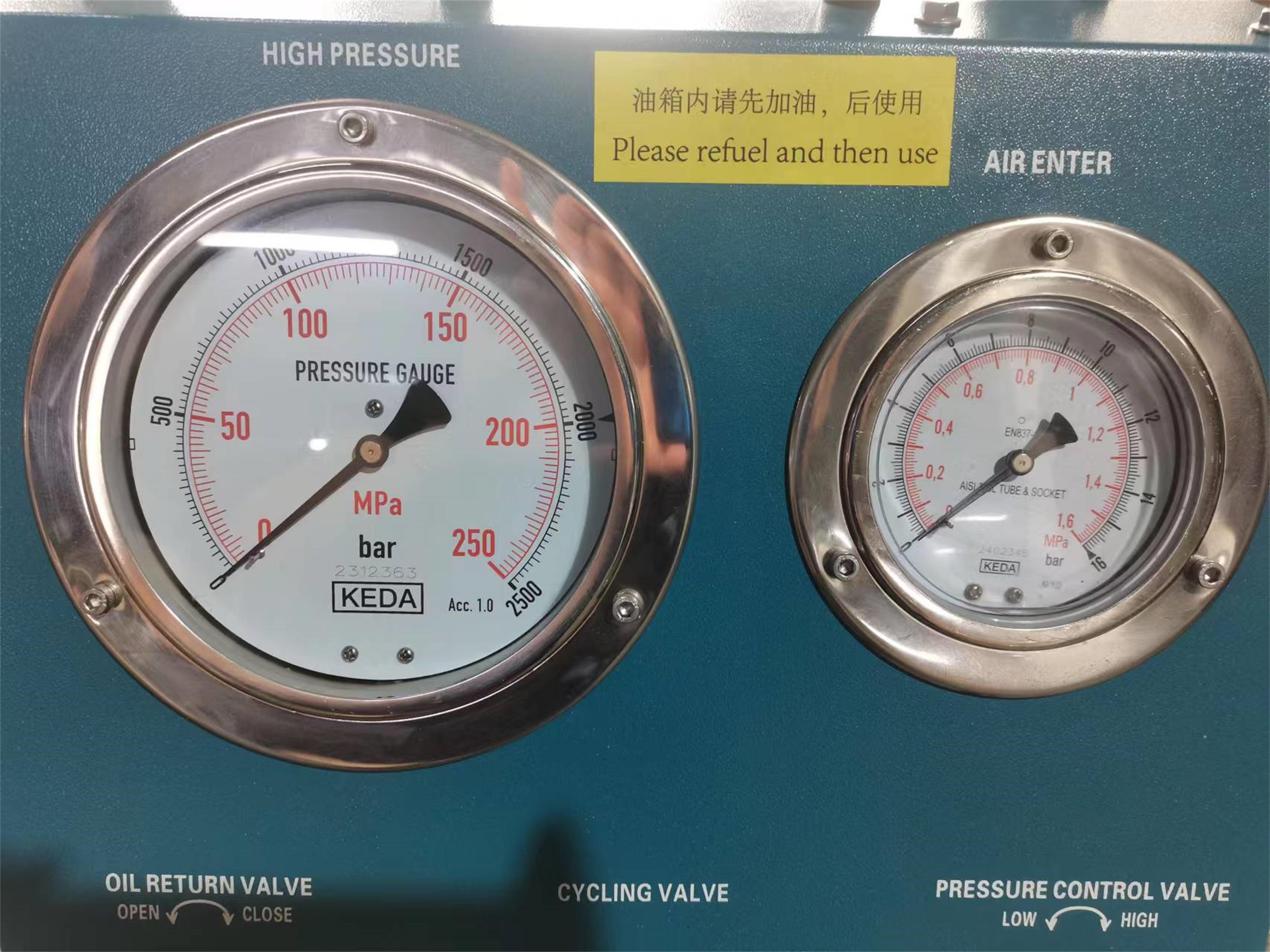

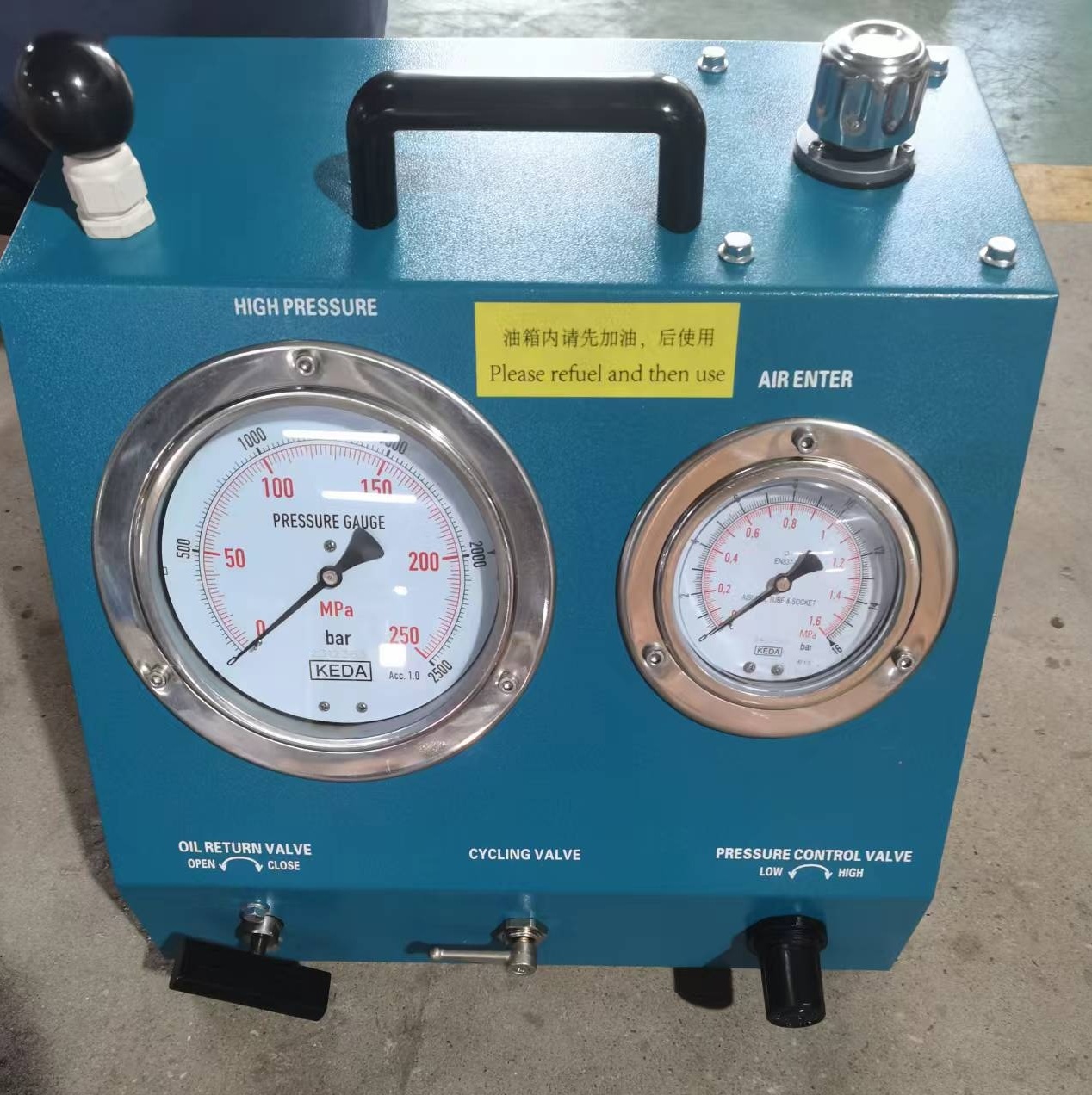

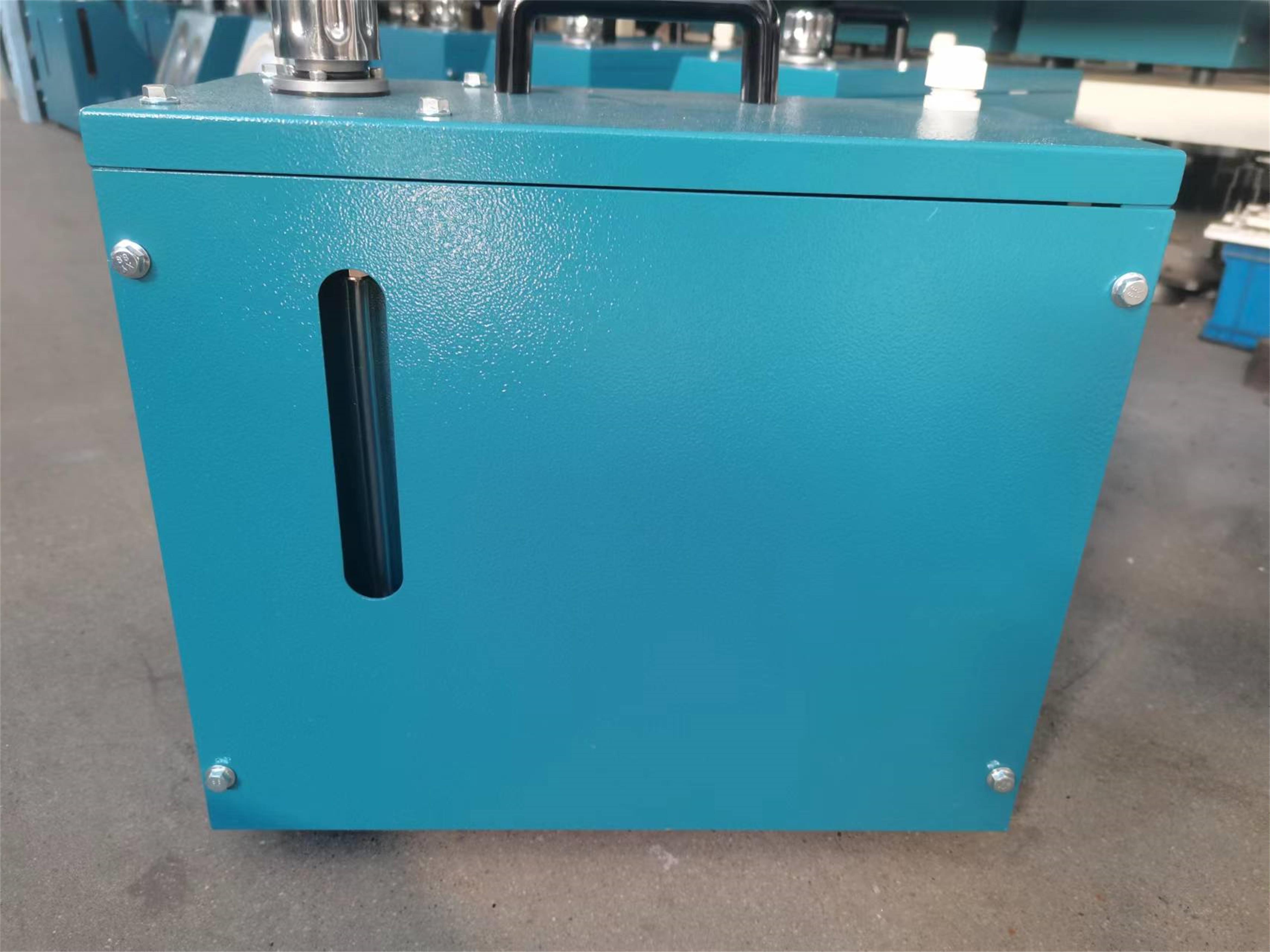

Marine Hydraulic High Pressure Pump and Air Driven Hydraulic Pump

Specification

size
FYB150:   310*380*535mm
FYB225:   430*370*415mm
FYB250:   450*370*420mm
HPU350-1:  490*430*480mm
HPU350-2:  500*420*560mm





characteristic
1、Self-filling pump:
In general, Marine air driven hydraulic pumps are self-filling pumps, without the use of air line lubricators.
2、Pressure regulation:
When the outlet pressure rises, the air driven hydraulic pump will slow down and stop running automatically when the force is balanced. When the outlet pressure is reduced or the gas drive pressure is increased, the pump will automatically start running.
3、Strong adaptability:
Can flush, fill oil or fill chemical media, widely used in a variety of Marine hydraulic systems.

Principle
The working principle of a Marine air driven hydraulic pump is similar to that of a reciprocating supercharger. The bottom piston is controlled by two four-way pilot valves. When the driving piston runs upward, negative pressure is generated in the pump, and the liquid is sucked into the pump through the check valve at the entrance, and the exit check valve is closed. When the piston runs down, a certain pressure is formed on the liquid side, and the pressure closes the check valve at the entrance, opens the check valve at the exit, and the liquid is discharged. This automatic circulation process ensures the continuous operation of the pump.

Application
Marine air driven hydraulic pumps have a wide range of applications in Marine hydraulic systems, including but not limited to:
1、Hydraulic steering system:
Delivers powerful force to achieve smooth and reliable ship steering.
2、Anchoring and winching mechanisms:
Drive hydraulic winches and recover anchors, lift heavy equipment, and handle towing operations.
3、Cranes and lifts:
Provide the power needed to lift cargo, ensuring height control and safety.
4、Stability system:
The stabilizer is adjusted by a hydraulic actuator to counteract the rocking of the boat and improve comfort and safety.

Notice
1、Safe operation:
When using Marine air driven hydraulic pump, safety operation procedures should be strictly observed to ensure the safety of personnel and equipment.
2、Pressure control:
Control the output flow and outlet pressure of the equipment during operation to prevent unstable pressure changes.
3、Environmental adaptability:
Due to the particularity of the ship's working environment (such as moisture, corrosion, etc.), it is necessary to choose adaptable and corrosion-resistant materials and equipment.

To sum up, Marine air driven hydraulic pump plays an important role in Marine hydraulic system with its unique working principle and superior performance characteristics. During use, it is necessary to pay attention to its maintenance and safety issues to ensure its long-term stable operation.
